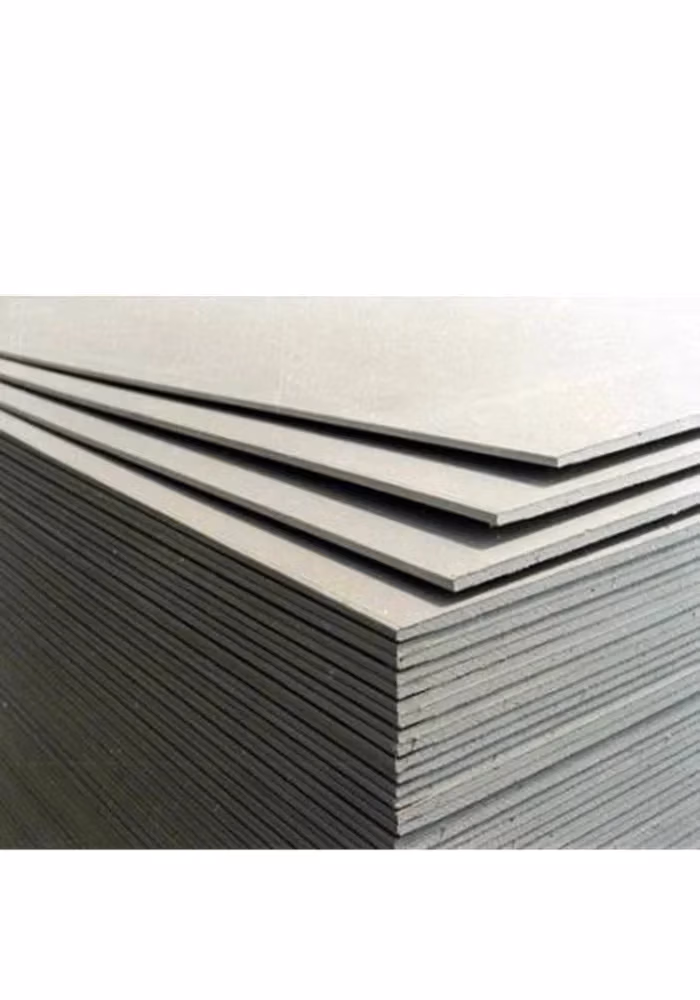

7mm Gypsum Ceiling Boards for Interior Ceiling Projects
Create a clean ceiling finish with BEAM RG 7mm gypsum ceiling boards, supplied in 3000mm lengths. Whether you are planning a new room, replacing an older ceiling or ordering materials for a renovation, choosing the right board is the first step towards a well-finished interior.
At Roof Insulations, we help you bring the material order together, from the board selection to suitable ceiling insulation. Send us your measurements, planned finish and delivery location so we can assist with a project quotation.
These gypsum ceiling boards are part of the BEAM RG regular board range. Select them as part of a ceiling specification that suits the room conditions, board thickness and supporting framework. For projects with specific moisture, fire, or acoustic requirements, establish the required system before ordering.
BEAM RG 7mm Gypsum Ceiling Board Specifications
| Product detail | Specification |
|---|---|
| Brand | BEAM |
| Board range | RG — regular gypsum board |
| Thickness | 7mm |
| Length | 3000mm |
| Length in metres | 3m |
| Product category | Gypsum ceiling boards |
When requesting a quotation, specify BEAM RG, 7mm thickness and 3000mm length. This helps ensure that different quotations refer to the same product. Include the board quantity if you already have a material schedule, or provide your room measurements if you need help estimating the order.
Why Choose 3000mm Gypsum Ceiling Boards?
Board length affects the cutting plan, the number of end joints and how easily materials can be moved into the building. A three-metre sheet can be a useful option where its length works well with the room dimensions and ceiling layout.
For example, a layout using longer sheets may need fewer end joints than one using shorter sheets. The benefit depends on the actual room dimensions, board orientation and required joint positions. A sensible layout is more useful than simply choosing the longest board available.
Before ordering 3000mm gypsum ceiling boards, check:
- The length and width of each room.
- The direction and spacing of the proposed ceiling supports.
- Access through doors, corridors and stairways.
- The position of access hatches and other ceiling openings.
- Where sheets will be stored before installation.
Discuss these details with your installer before finalising quantities. A cutting plan can help reduce avoidable offcuts and make the material order easier to check.
Planning a New Ceiling or Replacing an Old One
Gypsum ceiling boards are worth considering for dry interior rooms where the design calls for a plasterboard ceiling. Start with the room’s purpose and the finish you want, then confirm the board and system specification.
For a bedroom renovation, appearance and the opportunity to upgrade insulation may lead the discussion. For an office, access to services and sound control may be equally relevant. Each project needs a ceiling that suits how the space will be used.
When replacing an existing ceiling, ask the installer to assess the framework before the material order is placed. Record the existing board thickness and any changes needed around cornices, hatches and light fittings. If the ceiling has water damage, resolve the moisture source before fitting replacement boards.
BEAM Gypsum Boards and RhinoBoard Ceiling Boards
If you are comparing gypsum boards with RhinoBoard ceiling boards, begin with the brand distinction. Gypsum board describes a type of building material. RhinoBoard is Gyproc’s branded plasterboard range. This product is BEAM RG.
Both names may appear when you are shopping for ceiling materials, but the products should be compared using their actual specifications. A similar appearance does not establish identical installation requirements or performance. Gyproc lists its own board products in the official RhinoBoard range.
For a useful comparison, check the specified thickness, sheet dimensions, recommended ceiling system, finishing method and delivered material cost. If your drawings specifically require RhinoBoard ceiling boards, have any proposed substitution accepted by the person responsible for the specification before ordering.
BEAM also distinguishes regular RG boards from its specialist moisture-resistant, fire-resistant and acoustic products. See BEAM’s explanation of its gypsum board range for the product-family differences.
Choosing the Finish for Your Gypsum Ceiling Boards
Decide on the intended finish before ordering the board and accessories. Show your installer a reference photograph, or explain whether you want visible joint detailing or a continuous finished appearance.
Ask for the proposed finish to be checked against the specific 7mm BEAM board and ceiling system. Board thickness alone does not establish whether a particular joint treatment or full skim is suitable.
The quotation should identify the jointing products, trims and surface preparation included. It should also explain whether painting is included or will be handled separately. This makes it easier to compare installation quotations and agree on the expected result before work starts.
How Many Gypsum Ceiling Boards Do You Need?
Start with the ceiling area for each room. For a simple rectangular ceiling, multiply the room length by its width. A room measuring 4m × 5m has a ceiling area of 20m².
Next, use the confirmed sheet width and length to calculate the area of one board:
Board coverage = sheet length in metres × sheet width in metres.
Divide the ceiling area by the board coverage to obtain an initial quantity, then allow for the actual cutting layout and round up to whole boards. This area calculation is a starting estimate; it does not account for every joint position or offcut.
For illustration, a 10% cutting allowance would increase a 20m² material estimate to 22m². That percentage is a budgeting example, not a fixed requirement. Irregular rooms, bulkheads and awkward access can change the order.
Send Roof Insulations a room-by-room measurement list when ordering gypsum ceiling boards. Include bulkhead faces and other boarded surfaces separately so they are included in the estimate.
Comparing Gypsum Ceiling Board Prices
Compare quotations for the same brand, thickness and sheet size. Then check the sales unit: a price per board and a price per square metre need to be converted before they can be compared fairly.
For a board sold individually:
Board material cost per m² = price per board ÷ confirmed coverage per board.
Ask whether VAT and delivery are included. For the complete project budget, also account for framing, fixings, jointing materials, trims, insulation, labour and painting where required.
The initial sheet price is only one part of the cost. Ordering the right dimensions, avoiding unnecessary handling and planning the cutting layout can all affect what you ultimately spend.
For current pricing on BEAM RG 7mm gypsum ceiling boards, request a quotation from Roof Insulations. Include your quantity or ceiling measurements and the delivery address.
Plan Ceiling Insulation at the Same Time
A new ceiling is a useful opportunity to plan the insulation above it. Gypsum ceiling boards provide the lining, while suitable bulk insulation helps reduce heat transfer through the ceiling area.
Explore Aerolite insulation and Knauf insulation, or browse our ceiling insulation range to compare options.
Ask your installer to coordinate the board system, insulation, roof-space access and services before work begins. Include insulation in the quotation request so it can be considered with the rest of the project.
Delivery, Handling and Storage
Arrange a dry indoor storage area before the gypsum ceiling boards arrive. Keep sheets flat, raised from the floor and evenly supported, with protection for their edges. Avoid leaving the boards outside under a temporary cover.
Tell us about access restrictions when requesting delivery. Three-metre sheets need a suitable unloading route and enough room to be moved into storage. For general handling and material guidance, consult the Gypsum Association’s technical FAQs.
Frequently Asked Questions
What does RG mean?
RG identifies the regular gypsum board range. BEAM also offers specialist board families for other requirements. Choose the product and system that match the intended application.
Are these gypsum ceiling boards three metres long?
Yes. This product is the 3000mm-long, 7mm-thick BEAM RG board. Specify these dimensions when requesting your quotation.
Are BEAM RG boards the same brand as RhinoBoard?
No. BEAM RG and Gyproc RhinoBoard are different branded products. If you are comparing RhinoBoard ceiling boards with this option, check the product specifications and the requirements of the ceiling design.
Can regular gypsum boards be used in a bathroom?
Bathroom conditions need to be assessed before choosing a board. Ask for a ceiling specification appropriate to the expected humidity and moisture exposure. Regular RG boards should not be assumed to provide the performance of a specialist moisture-resistant product.
Do these boards provide a fire-rated ceiling?
A fire rating applies to a specified and tested assembly. Do not assign a fire-resistance period to this 7mm board on its own. Where a fire-rated ceiling is required, order the components identified in the approved system specification.
Can I use these boards instead of a thicker board?
Only where the proposed ceiling specification permits it. Board thickness, support requirements, and finish need to be considered together. Keep to the specified product unless a suitable change has been confirmed.
Can I order boards and insulation together?
Request them together in your project quotation. Include the ceiling measurements, required board quantity if known, preferred insulation and delivery location so Roof Insulations can help you organise the material order.
Request Your BEAM RG Ceiling Board Quotation
Ready to order 7mm gypsum ceiling boards in 3000mm lengths? Send Roof Insulations your room measurements or board schedule, planned finish and delivery location.
Tell us whether the project is a new ceiling, a replacement or part of a larger renovation. Include your intended installation date so availability and delivery arrangements can be checked before the order is finalised.
Contact Roof Insulations for a BEAM RG quotation and let us help you put the ceiling materials together.
